License activation Pro

Semaphore Pro and Enterprise features are enabled with a license key. You can activate the license from the web UI, or provide the key in the server configuration for automated deployments.

Before you start​

  • You do not need to reinstall Semaphore UI or switch to a different build to activate Pro or Enterprise. Your current Semaphore UI version can be activated with a license key. Update to the latest version if you want access to the newest Pro or Enterprise features.
  • Sign in with an administrator account.
  • Have your license key ready. You can find it in the purchase email or in the Semaphore UI Portal.

Activate from the web UI​

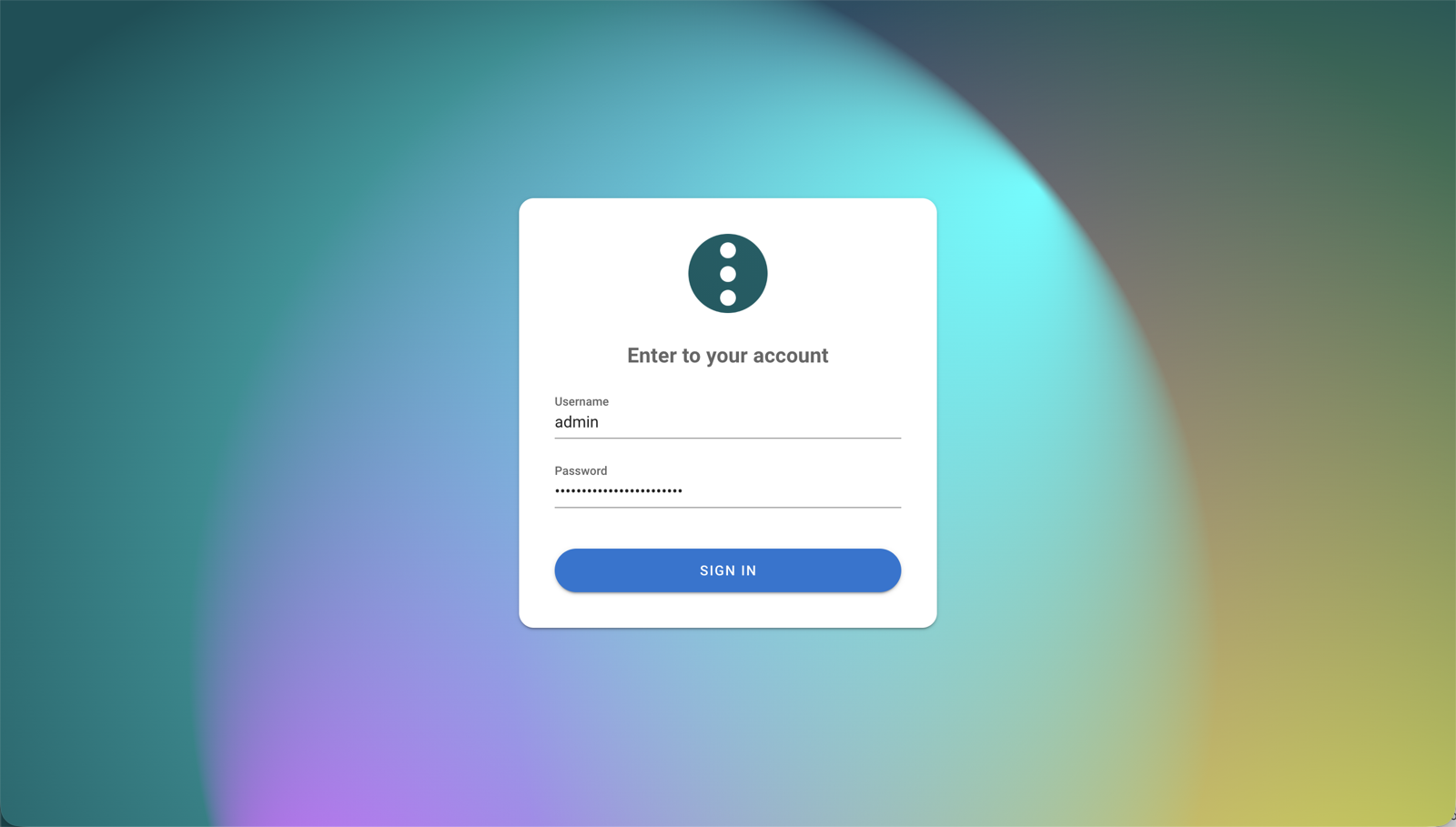

  1. Sign in to Semaphore UI as an administrator.

Semaphore UI login screen

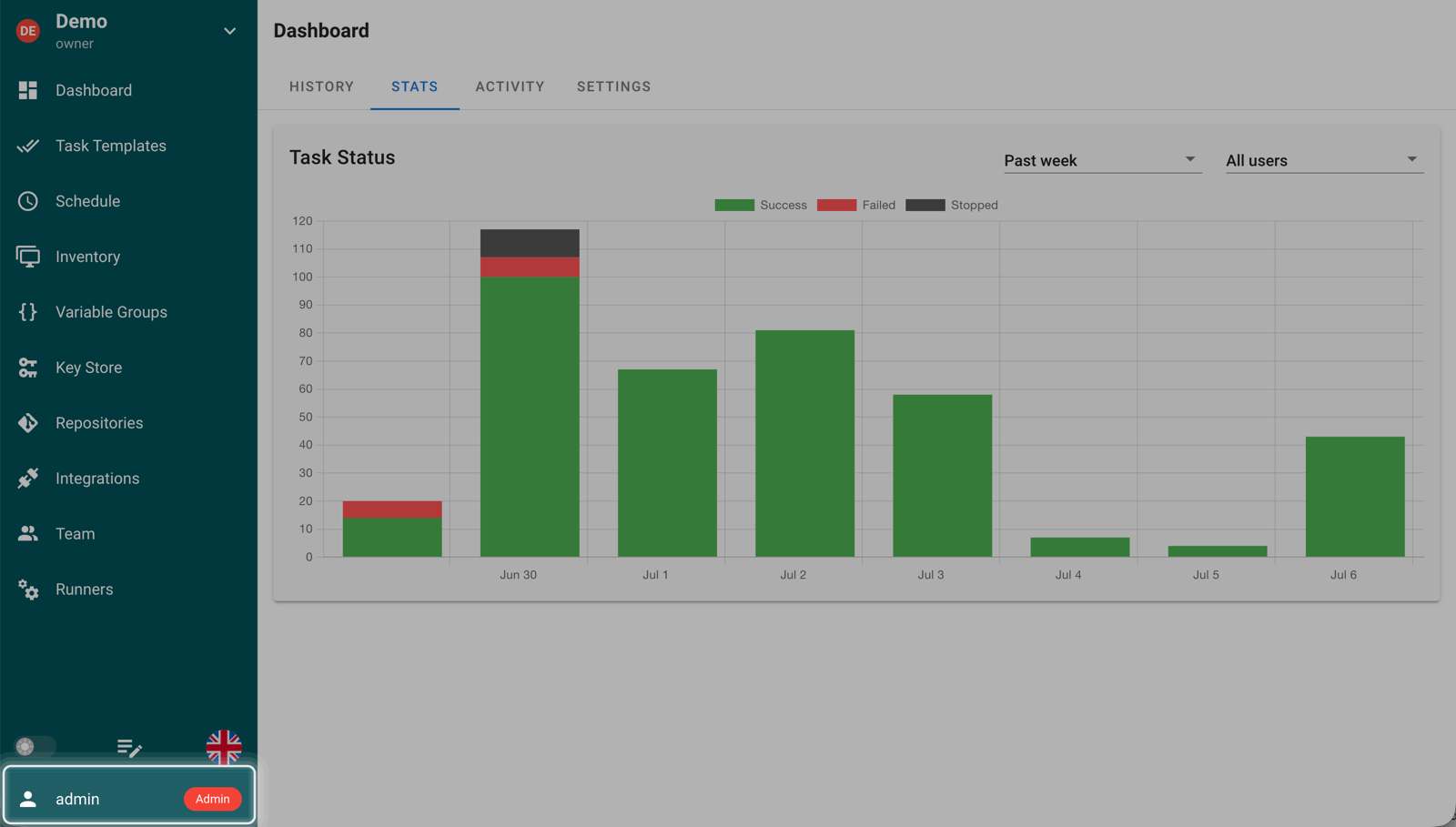

  1. Open the Admin menu from the user area in the lower-left corner.

Admin menu trigger in the lower-left corner

  1. Select Upgrade to PRO or EE.

Admin menu with the Upgrade to PRO or EE item

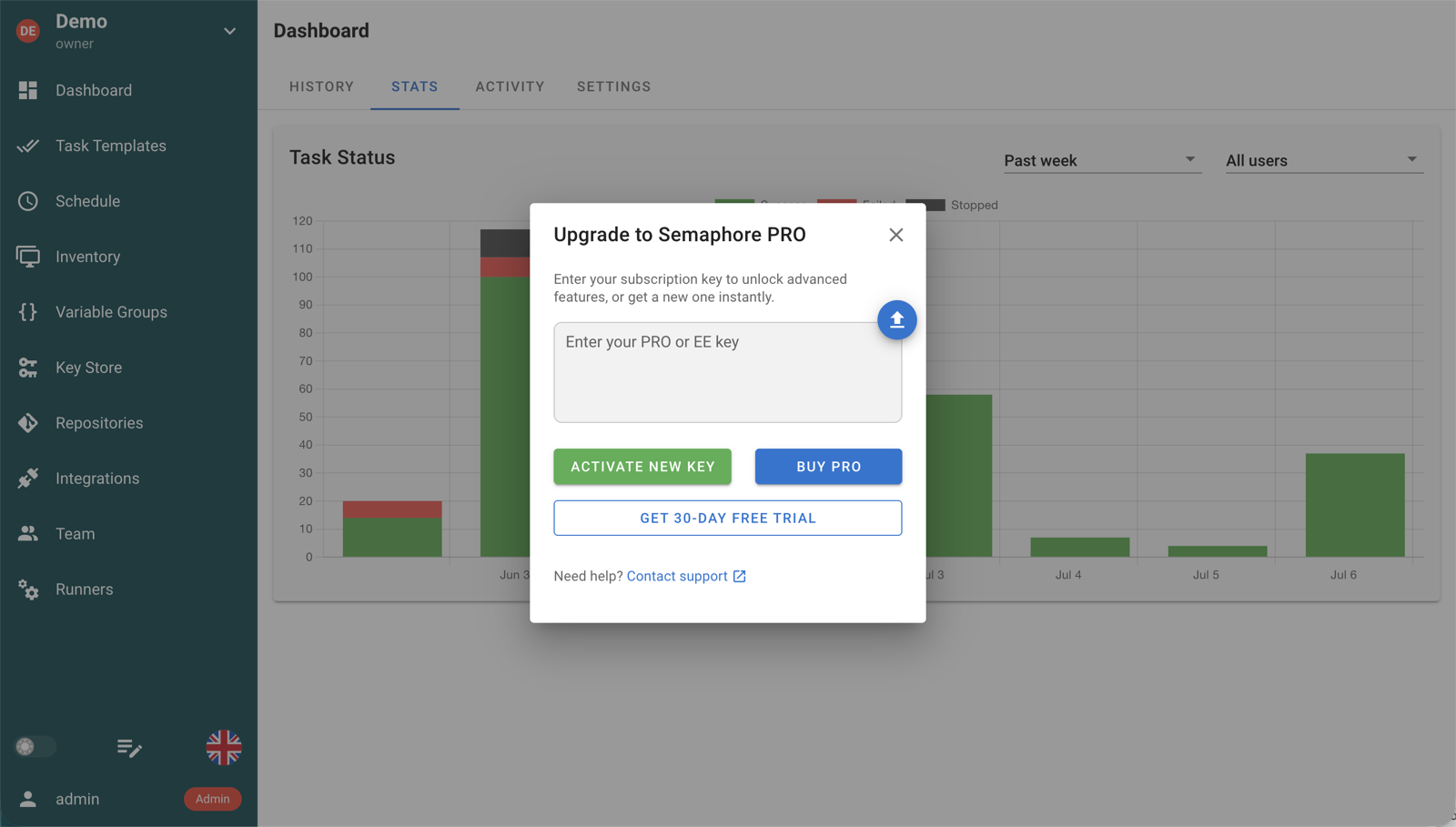

  1. Paste your license key into the activation dialog and click ACTIVATE NEW KEY.

Semaphore Pro activation dialog

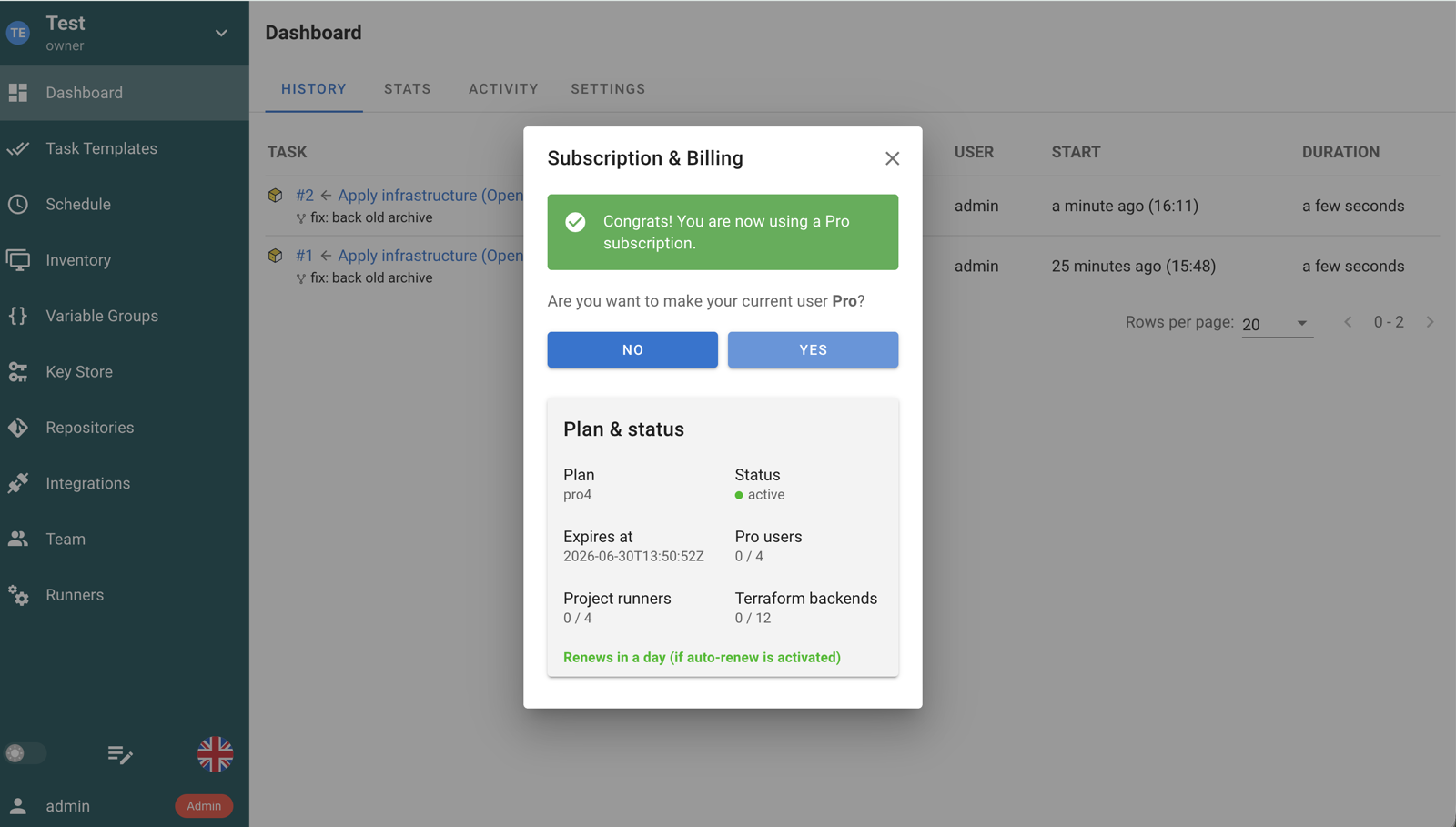

After a successful activation, Semaphore UI shows your current license details in the Subscription & Billing dialog.

Subscription and Billing dialog after successful activation

Activate from configuration​

For Docker, Kubernetes, systemd, or other automated deployments, provide the license key in the server configuration instead of entering it in the UI. The configuration option names use subscription.*.

In config.json:

{
"subscription": {
"key": "YOUR_LICENSE_KEY"
}
}

Or as an environment variable:

export SEMAPHORE_SUBSCRIPTION_KEY=YOUR_LICENSE_KEY

You can also store the key in a file:

{
"subscription": {
"key_file": "/run/secrets/semaphore-license-key"
}
}

or:

export SEMAPHORE_SUBSCRIPTION_KEY_FILE=/run/secrets/semaphore-license-key

When the license key is managed by configuration, Semaphore UI disables editing and activation controls in the Subscription & Billing dialog. This applies to both subscription.key and subscription.key_file, because the server reads the key file into the runtime license key at startup.

How license validation works​

Semaphore UI validates a license against the Semaphore UI Portal. The address is subscription.server_url, https://portal.semaphoreui.com/billing by default.

What Semaphore UI connects to​

WhenRequest
Activating a keyPOST {server_url}/subscriptions/{key}/activate
Validating and refreshing the licensePOST {server_url}/subscriptions/{key}/validate

Both are plain JSON requests, and a request is given up after 20 seconds. The activation request sends the license key; the validation request sends the license token the server holds at that moment. Nothing else leaves the installation: no user accounts, project names, inventories, host names, or task output are part of these requests.

The answer to both is a license token — a JWT signed by the portal with an RSA key. Semaphore UI verifies the signature against the matching public key built into the server binary, so a token cannot be forged or edited. Its claims carry what the license allows: the plan, the subscription state, the company name, the expiry date, and the number of Pro users, nodes, and UIs. The server keeps the key and the token in the database, in the subscription_key and subscription_token options.

When the check runs​

TriggerWhat happens
Server startupThe license token is refreshed once.
Every day at 01:00, server timeThe license token is refreshed.
Activating a key in the UI, or a key in subscription.keyThe key is activated, which returns the first token.
Reload in the Subscription & Billing dialogThe license token is refreshed on demand.

Between those calls Semaphore UI does not contact the portal. Every license check — whether Pro features are enabled, and whether one more Pro user, runner, or Terraform/OpenTofu HTTP backend state fits into the license — reads the stored token locally.

When the portal cannot be reached​

A failed refresh is written to the server log under the subscription context and leaves the stored token untouched, so a network outage or an unavailable portal does not switch Pro features off. The installation keeps running until the expiry date in the token itself passes: an expired token still loads, but its state becomes expired and Pro features stop.

Online and offline keys​

  • An online key is a UUID, in the form xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx. Activating it calls the portal, and the daily refresh keeps it current. A value that is not a UUID is refused before any request is made.
  • An offline key is a license token itself — a long signed string issued for an installation without internet access. Semaphore UI verifies it locally and never calls the portal for it, so the daily refresh makes no request at all. To renew an offline license, replace the key with a newly issued one.

High availability​

Each server node refreshes the license on its own startup and on its own daily schedule, and writes the result into the shared database, so every node of the cluster reads the same license token. No extra configuration is needed.

Reach the license server through a proxy​

Since v2.20

The proxy is available since Semaphore 2.20.

Activating a key, refreshing the license token, and the daily token refresh all call the Semaphore UI Portal at subscription.server_url. In a network where the server has no direct internet access, route those calls through an HTTP proxy:

{
"subscription": {
"proxy": {
"url": "http://proxy.example.com:3128",
"username": "semaphore",
"password": "PROXY_PASSWORD"
}
}
}

Or as environment variables:

export SEMAPHORE_SUBSCRIPTION_PROXY_URL=http://proxy.example.com:3128
export SEMAPHORE_SUBSCRIPTION_PROXY_USERNAME=semaphore
export SEMAPHORE_SUBSCRIPTION_PROXY_PASSWORD=PROXY_PASSWORD

Notes:

  • The schemes http, https, socks5, and socks5h are supported. An invalid proxy address stops the server at startup.
  • username and password are optional, and override credentials given inside url. Keeping them separate keeps the password out of the proxy address Semaphore UI logs.
  • The proxy applies only to requests to the license server. Tasks, Git clones, and other outgoing connections are not affected.
  • Without subscription.proxy, the license server is reached through the proxy variables of the server process (HTTP_PROXY, HTTPS_PROXY, NO_PROXY), as before.
  • An air-gapped installation needs an offline license key instead of a proxy — the server never calls the portal for it.

Manage or replace a license key​

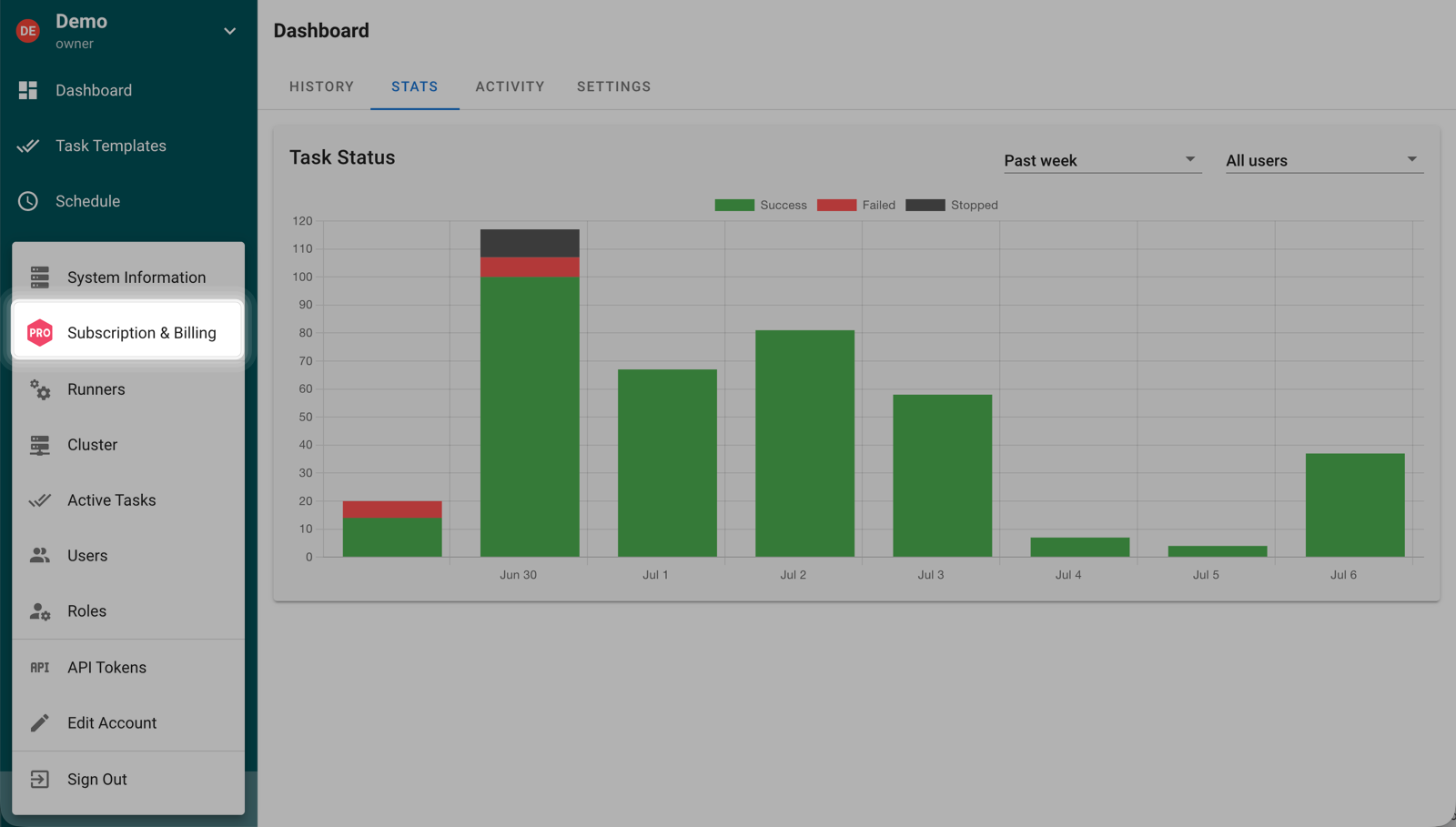

To renew, replace, or review your license, open the Admin menu and select Subscription & Billing.

Admin menu with the Subscription and Billing item

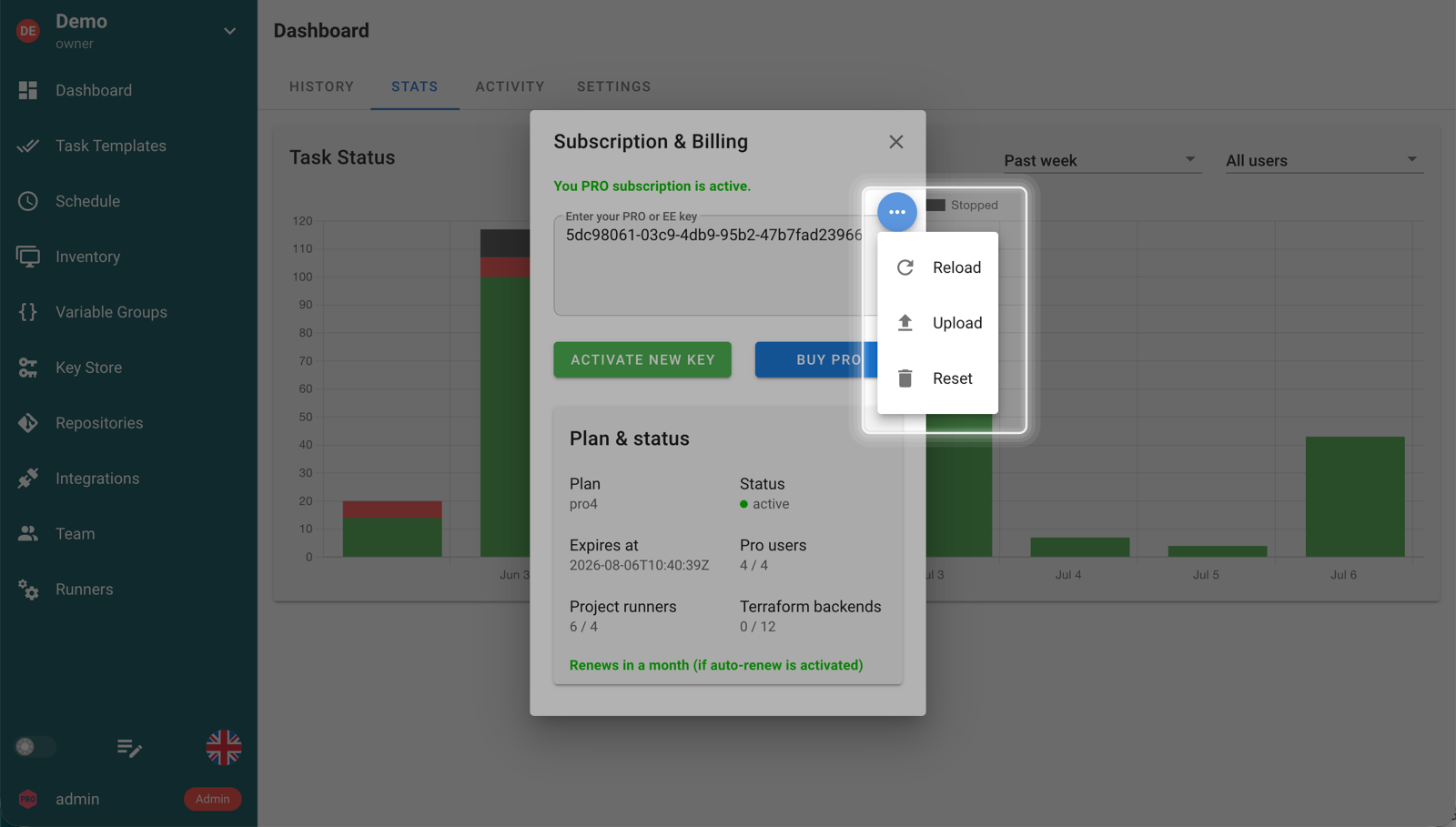

For a license key managed from the web UI, open the action menu in the Subscription & Billing dialog to reload, upload, or reset the key.

Subscription and Billing dialog with key actions

If the key is configured on the server:

  1. Replace the value of subscription.key, or update the contents of the file referenced by subscription.key_file.
  2. Restart Semaphore UI so the server reloads the license key.
  3. Verify that the expected Pro or Enterprise options are available in Semaphore UI.

Nodes​

For Pro and Enterprise licenses, the Subscription & Billing dialog has a Nodes row: how many hosts are in use and how many the license includes. A host is in use when an Ansible task reached it in the last month and an administrator has not decommissioned it. When more hosts are in use than the license includes, the row turns red and shows (limit exceeded). For more information, see Hosts.
